The ASState class manages and transitions between different states of the vehicle system. More...

#include <stateLogic.hpp>

Collaboration diagram for ASState:

Public Member Functions
	ASState (SystemData system_data, Communicator communicator, OutputCoordinator *output_coordinator)
	Constructor for the ASState class.

void	calculate_state ()
	Calculates the state of the vehicle.

void	timer_started ()

Public Attributes
CheckupManager	_checkup_manager_
	CheckupManager object for handling various checkup operations.

State	state_ {State::AS_OFF}
	Current state of the vehicle system, initialized to OFF.

Detailed Description

The ASState class manages and transitions between different states of the vehicle system.

The ASState class uses the CheckupManager to perform system checks and determine the appropriate state transitions based on the vehicle's status and operational conditions. It interacts with hardware components via the OutputCoordinator and Communicator interfaces to update the system state and handle transitions.

Definition at line 18 of file stateLogic.hpp.

Constructor & Destructor Documentation

◆ ASState()

ASState::ASState	(	SystemData *	system_data,
		Communicator *	communicator,
		OutputCoordinator *	output_coordinator
	)

inlineexplicit

Constructor for the ASState class.

Parameters

system_data	Pointer to the SystemData object containing system status and sensor information.
communicator	Pointer to the Communicator object.
output_coordinator	Pointer to the OutputCoordinator object.

Definition at line 41 of file stateLogic.hpp.

Member Function Documentation

◆ calculate_state()

void ASState::calculate_state ( )

inline

Calculates the state of the vehicle.

Definition at line 56 of file stateLogic.hpp.

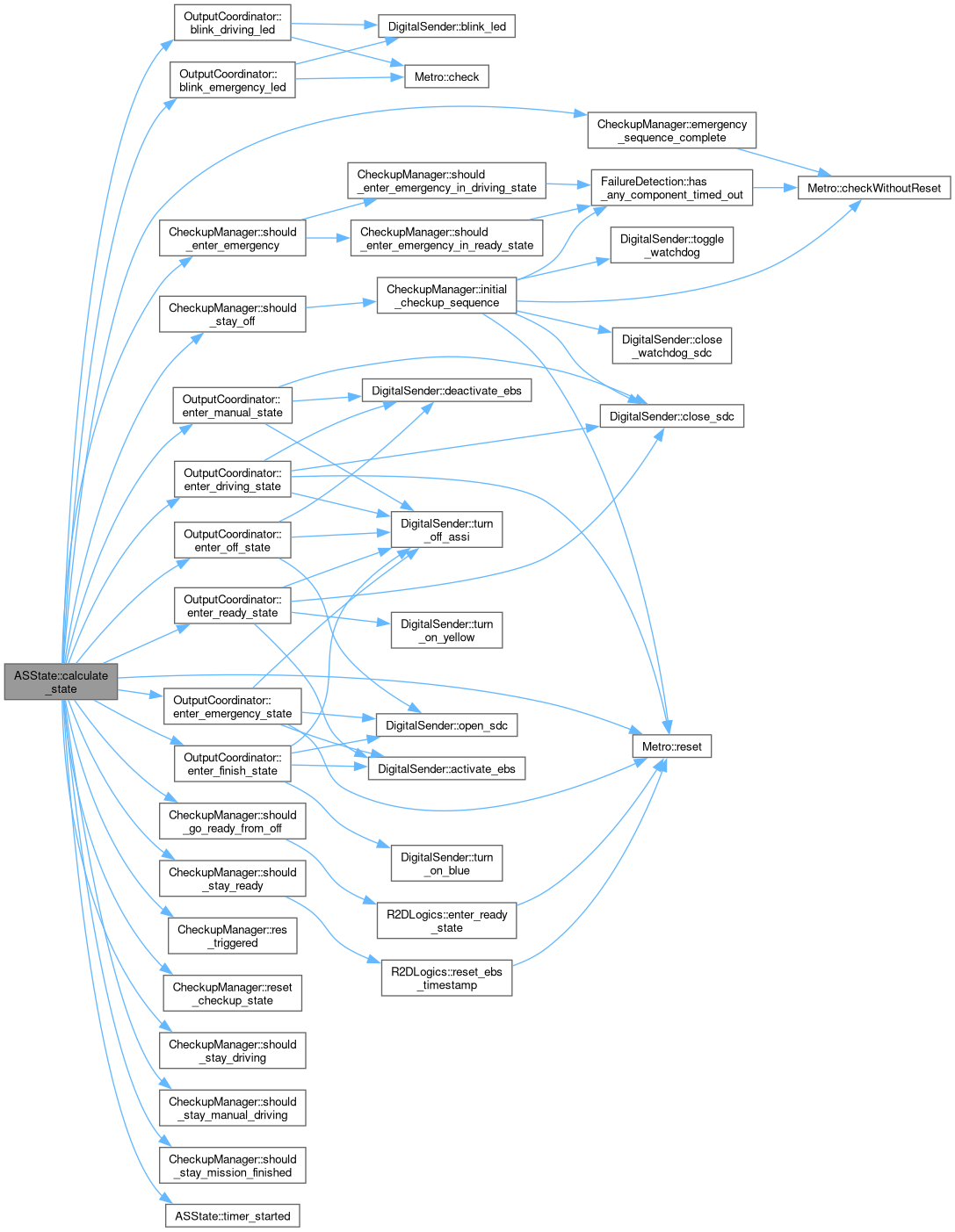

Here is the call graph for this function:

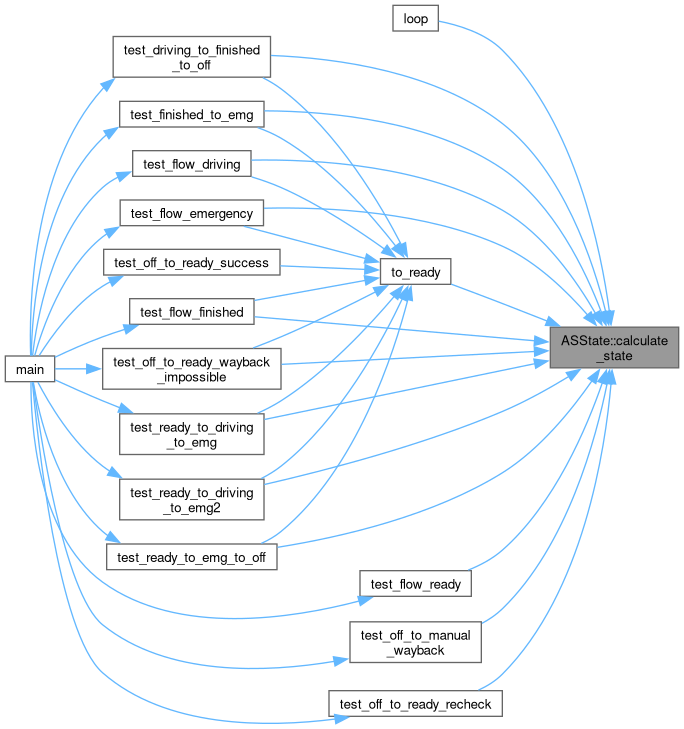

Here is the caller graph for this function:

◆ timer_started()

void ASState::timer_started ( )

inline

Definition at line 53 of file stateLogic.hpp.

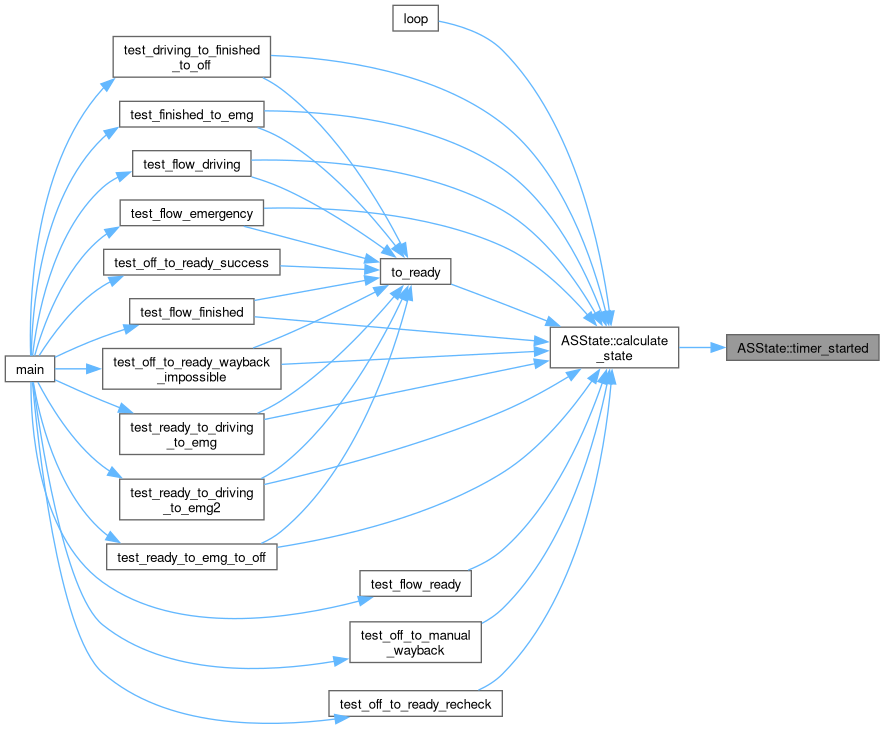

Here is the caller graph for this function:

Member Data Documentation

◆ _checkup_manager_

CheckupManager ASState::_checkup_manager_

CheckupManager object for handling various checkup operations.

Definition at line 31 of file stateLogic.hpp.

◆ state_

State ASState::state_ {State::AS_OFF}

Current state of the vehicle system, initialized to OFF.

Definition at line 32 of file stateLogic.hpp.

The documentation for this class was generated from the following file:

master/include/logic/stateLogic.hpp
