VolatileMetro Class Reference

Volatile version of Metro class for interrupt-safe operations. More...

#include <metro.h>

Collaboration diagram for VolatileMetro:

Public Member Functions
	VolatileMetro (unsigned long interval_millis, uint8_t autoreset=0)
	Constructor to initialize the timer with a given interval and autoreset behavior.
void	interval (unsigned long interval_millis) volatile
	Sets a new interval for the timer.
bool	check () volatile
	Checks if the interval has passed and resets the timer if true.
bool	checkWithoutReset () const volatile
	Checks if the interval has passed without resetting the timer.
void	reset () volatile
	Resets the timer to the current time.

Detailed Description

Volatile version of Metro class for interrupt-safe operations.

This class provides the same functionality as Metro but with volatile qualifiers to ensure safe access from interrupt handlers and multi-threaded contexts.

Definition at line 135 of file metro.h.

Constructor & Destructor Documentation

VolatileMetro()

VolatileMetro::VolatileMetro ( unsigned long  interval_millis, uint8_t  autoreset = 0  )

inline

Constructor to initialize the timer with a given interval and autoreset behavior.

Parameters

interval_millis	The interval in milliseconds for the timer
autoreset	If set to non-zero, the timer will reset automatically upon a successful check

Definition at line 174 of file metro.h.

Here is the call graph for this function:

Member Function Documentation

check()

bool VolatileMetro::check ( ) volatile

inline

Checks if the interval has passed and resets the timer if true.

Returns

true if the interval has passed, false otherwise

Definition at line 186 of file metro.h.

checkWithoutReset()

bool VolatileMetro::checkWithoutReset ( ) const volatile

inline

Checks if the interval has passed without resetting the timer.

Returns

true if the interval has passed, false otherwise

Definition at line 203 of file metro.h.

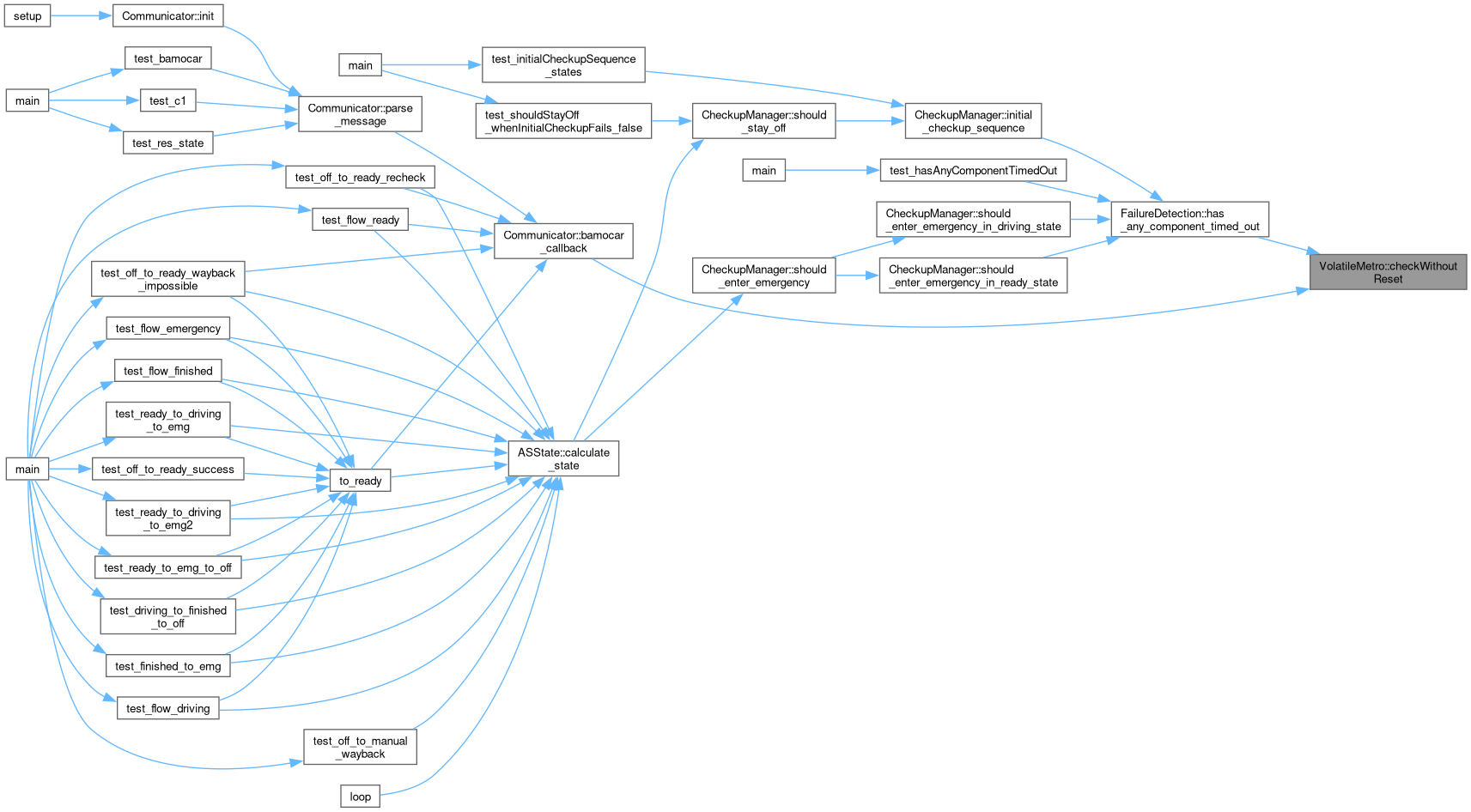

Here is the caller graph for this function:

interval()

void VolatileMetro::interval ( unsigned long  interval_millis ) volatile

inline

Sets a new interval for the timer.

Parameters

interval_millis

The new interval in milliseconds

Definition at line 181 of file metro.h.

Here is the caller graph for this function:

reset()

void VolatileMetro::reset ( ) volatile

inline

Resets the timer to the current time.

Definition at line 212 of file metro.h.

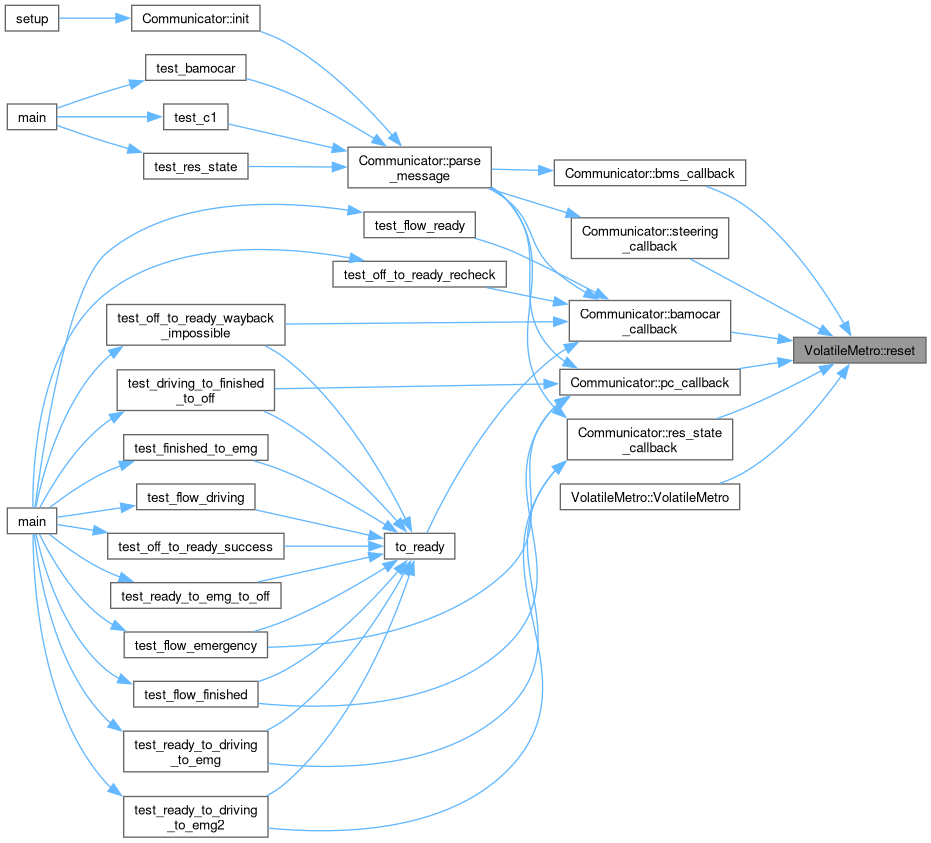

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• master/include/metro.h
