hardwareSettings.hpp File Reference

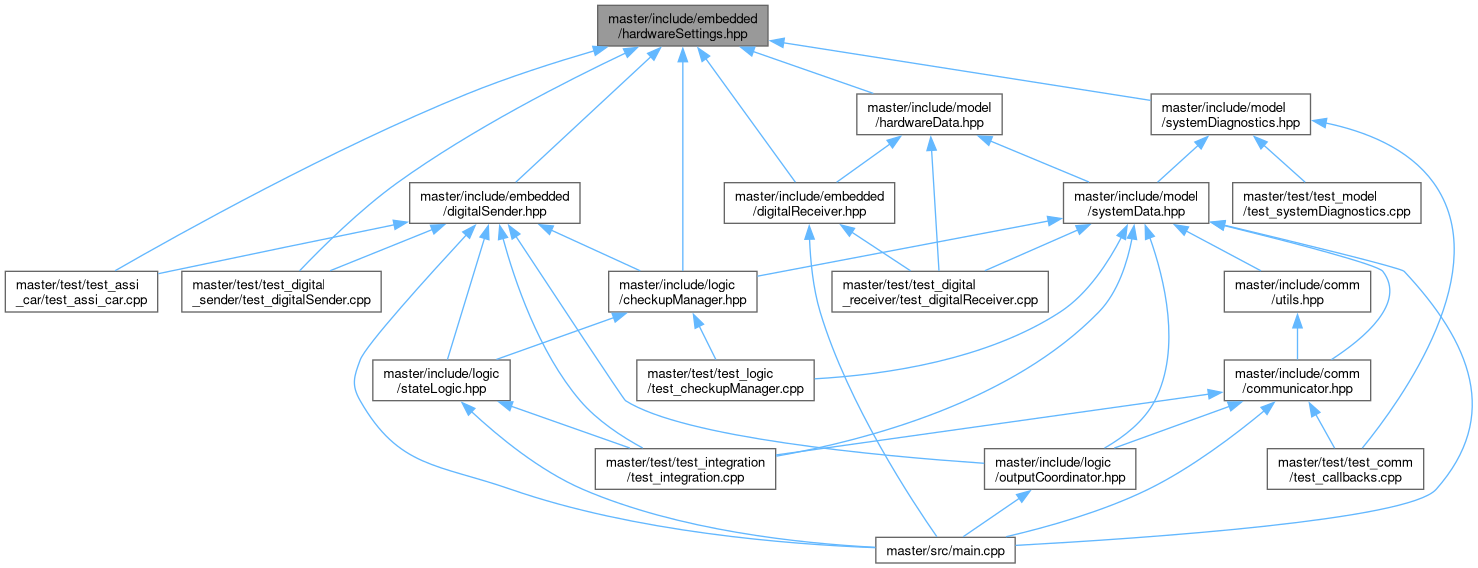

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Variables

constexpr int COMPONENT_TIMESTAMP_TIMEOUT = 500

constexpr int RES_TIMESTAMP_TIMEOUT = 200

constexpr int DC_VOLTAGE_TIMEOUT = 150

constexpr int DC_VOLTAGE_HOLD = 1000

constexpr int EBS_BUZZER_TIMEOUT = 8000

constexpr int LED_BLINK_INTERVAL = 500

constexpr int PROCESS_INTERVAL = 200

constexpr int SLOWER_PROCESS_INTERVAL = 30

constexpr int INITIAL_CHECKUP_STEP_TIMEOUT = 500

constexpr unsigned long READY_TIMEOUT_MS = 5000

constexpr unsigned long RELEASE_EBS_TIMEOUT_MS = 1000

constexpr unsigned long ENGAGE_EBS_TIMEOUT_MS = 5000

constexpr int WD_TIMEOUT_MS = 500

constexpr int BRAKE_PRESSURE_LOWER_THRESHOLD = 170

constexpr int BRAKE_PRESSURE_UPPER_THRESHOLD = 510

constexpr int LIMIT_RPM_INTERVAL = 500000

constexpr int ADC_MAX_VALUE = 1023

constexpr int SOC_PERCENT_MAX = 100

constexpr int MAX_MISSION = 7

constexpr int PULSES_PER_ROTATION = 48

constexpr int SECONDS_IN_MINUTE = 60

constexpr float MICRO_TO_SECONDS = 1e-6f

constexpr int CHANGE_COUNTER_LIMIT = 5

constexpr int WD_PULSE_INTERVAL_MS = 50

constexpr int WATCHDOG_TOGGLE_DURATION = 1000

constexpr int WATCHDOG_TEST_DURATION = 1000

constexpr float MAX_V_ANALOG = 3.3

constexpr float MIN_HYDRAULIC_V = 0.5

constexpr float HYDRAULIC_PRESSURE_SLOPE = 65.0f

constexpr int HYDRAULIC_PRESSURE_MAX_BAR = 95

constexpr int HYDRAULIC_PRESSURE_ADC_MIN

constexpr float MAX_HYDRAULIC_V

constexpr int HYDRAULIC_PRESSURE_ADC_MAX

constexpr int HYDRAULIC_PRESSURE_SPAN_ADC

constexpr int ASSI_BLUE_PIN = 25

constexpr int ASSI_YELLOW_PIN = 12

constexpr int EBS_VALVE_REAR_PIN = 17

constexpr int EBS_VALVE_FRONT_PIN = 13

constexpr int CLOSE_SDC = 21

constexpr int SDC_BSPD_OUT = 14

constexpr int BRAKE_LIGHT = 2

constexpr int WD_SDC_CLOSE = 40

constexpr int WD_ALIVE = 15

constexpr int ASMS_IN_PIN = 18

constexpr int AMI = 19

constexpr int EBS_SENSOR1 = 41

constexpr int EBS_SENSOR2 = 39

constexpr int SDC_TSMS_STATE_PIN = 22

constexpr int RL_WSS = 5

constexpr int RR_WSS = 4

constexpr int BRAKE_SENSOR = 38

constexpr int SOC = 24

constexpr int ATS = 16

constexpr int ASATS = 20

constexpr int WD_READY = 37

constexpr int WD_SDC_RELAY = 33


Variable Documentation

◆ ADC_MAX_VALUE

constexpr int ADC_MAX_VALUE = 1023
constexpr

Definition at line 20 of file hardwareSettings.hpp.

◆ AMI

constexpr int AMI = 19
constexpr

Definition at line 80 of file hardwareSettings.hpp.

◆ ASATS

constexpr int ASATS = 20
constexpr

Definition at line 92 of file hardwareSettings.hpp.

◆ ASMS_IN_PIN

constexpr int ASMS_IN_PIN = 18
constexpr

Definition at line 79 of file hardwareSettings.hpp.

◆ ASSI_BLUE_PIN

constexpr int ASSI_BLUE_PIN = 25
constexpr

Definition at line 59 of file hardwareSettings.hpp.

◆ ASSI_YELLOW_PIN

constexpr int ASSI_YELLOW_PIN = 12
constexpr

Definition at line 60 of file hardwareSettings.hpp.

◆ ATS

constexpr int ATS = 16
constexpr

Definition at line 91 of file hardwareSettings.hpp.

◆ BRAKE_LIGHT

constexpr int BRAKE_LIGHT = 2
constexpr

Definition at line 69 of file hardwareSettings.hpp.

◆ BRAKE_PRESSURE_LOWER_THRESHOLD

constexpr int BRAKE_PRESSURE_LOWER_THRESHOLD = 170
constexpr

Definition at line 16 of file hardwareSettings.hpp.

◆ BRAKE_PRESSURE_UPPER_THRESHOLD

constexpr int BRAKE_PRESSURE_UPPER_THRESHOLD = 510
constexpr

Definition at line 17 of file hardwareSettings.hpp.

◆ BRAKE_SENSOR

constexpr int BRAKE_SENSOR = 38
constexpr

Definition at line 89 of file hardwareSettings.hpp.

◆ CHANGE_COUNTER_LIMIT

constexpr int CHANGE_COUNTER_LIMIT = 5
constexpr

Definition at line 29 of file hardwareSettings.hpp.

◆ CLOSE_SDC

constexpr int CLOSE_SDC = 21
constexpr

Definition at line 65 of file hardwareSettings.hpp.

◆ COMPONENT_TIMESTAMP_TIMEOUT

constexpr int COMPONENT_TIMESTAMP_TIMEOUT = 500
constexpr

Definition at line 3 of file hardwareSettings.hpp.

◆ DC_VOLTAGE_HOLD

constexpr int DC_VOLTAGE_HOLD = 1000
constexpr

Definition at line 6 of file hardwareSettings.hpp.

◆ DC_VOLTAGE_TIMEOUT

constexpr int DC_VOLTAGE_TIMEOUT = 150
constexpr

Definition at line 5 of file hardwareSettings.hpp.

◆ EBS_BUZZER_TIMEOUT

constexpr int EBS_BUZZER_TIMEOUT = 8000
constexpr

Definition at line 7 of file hardwareSettings.hpp.

◆ EBS_SENSOR1

constexpr int EBS_SENSOR1 = 41
constexpr

Definition at line 83 of file hardwareSettings.hpp.

◆ EBS_SENSOR2

constexpr int EBS_SENSOR2 = 39
constexpr

Definition at line 84 of file hardwareSettings.hpp.

◆ EBS_VALVE_FRONT_PIN

constexpr int EBS_VALVE_FRONT_PIN = 13
constexpr

Definition at line 63 of file hardwareSettings.hpp.

◆ EBS_VALVE_REAR_PIN

constexpr int EBS_VALVE_REAR_PIN = 17
constexpr

Definition at line 62 of file hardwareSettings.hpp.

◆ ENGAGE_EBS_TIMEOUT_MS

constexpr unsigned long ENGAGE_EBS_TIMEOUT_MS = 5000
constexpr

Definition at line 14 of file hardwareSettings.hpp.

◆ HYDRAULIC_PRESSURE_ADC_MAX

constexpr int HYDRAULIC_PRESSURE_ADC_MAX
constexpr
Initial value:
=
static_cast<int>(MAX_HYDRAULIC_V / MAX_V_ANALOG * ADC_MAX_VALUE)
ADC_MAX_VALUE
constexpr int ADC_MAX_VALUE
Definition hardwareSettings.hpp:20
MAX_HYDRAULIC_V
constexpr float MAX_HYDRAULIC_V
Definition hardwareSettings.hpp:46
MAX_V_ANALOG
constexpr float MAX_V_ANALOG
Definition hardwareSettings.hpp:34

Definition at line 49 of file hardwareSettings.hpp.

◆ HYDRAULIC_PRESSURE_ADC_MIN

constexpr int HYDRAULIC_PRESSURE_ADC_MIN
constexpr
Initial value:
=
static_cast<int>(MIN_HYDRAULIC_V / MAX_V_ANALOG * ADC_MAX_VALUE)
MIN_HYDRAULIC_V
constexpr float MIN_HYDRAULIC_V
Definition hardwareSettings.hpp:35

Definition at line 44 of file hardwareSettings.hpp.

◆ HYDRAULIC_PRESSURE_MAX_BAR

constexpr int HYDRAULIC_PRESSURE_MAX_BAR = 95
constexpr

Definition at line 39 of file hardwareSettings.hpp.

◆ HYDRAULIC_PRESSURE_SLOPE

constexpr float HYDRAULIC_PRESSURE_SLOPE = 65.0f
constexpr

Definition at line 38 of file hardwareSettings.hpp.

◆ HYDRAULIC_PRESSURE_SPAN_ADC

constexpr int HYDRAULIC_PRESSURE_SPAN_ADC
constexpr
Initial value:
=
HYDRAULIC_PRESSURE_ADC_MAX - HYDRAULIC_PRESSURE_ADC_MIN
HYDRAULIC_PRESSURE_ADC_MAX
constexpr int HYDRAULIC_PRESSURE_ADC_MAX
Definition hardwareSettings.hpp:49
HYDRAULIC_PRESSURE_ADC_MIN
constexpr int HYDRAULIC_PRESSURE_ADC_MIN
Definition hardwareSettings.hpp:44

Definition at line 51 of file hardwareSettings.hpp.

◆ INITIAL_CHECKUP_STEP_TIMEOUT

constexpr int INITIAL_CHECKUP_STEP_TIMEOUT = 500
constexpr

Definition at line 11 of file hardwareSettings.hpp.

◆ LED_BLINK_INTERVAL

constexpr int LED_BLINK_INTERVAL = 500
constexpr

Definition at line 8 of file hardwareSettings.hpp.

◆ LIMIT_RPM_INTERVAL

constexpr int LIMIT_RPM_INTERVAL = 500000
constexpr

Definition at line 18 of file hardwareSettings.hpp.

◆ MAX_HYDRAULIC_V

constexpr float MAX_HYDRAULIC_V
constexpr
Initial value:
=
(static_cast<float>(HYDRAULIC_PRESSURE_MAX_BAR) / HYDRAULIC_PRESSURE_SLOPE) +
MIN_HYDRAULIC_V
HYDRAULIC_PRESSURE_MAX_BAR
constexpr int HYDRAULIC_PRESSURE_MAX_BAR
Definition hardwareSettings.hpp:39
HYDRAULIC_PRESSURE_SLOPE
constexpr float HYDRAULIC_PRESSURE_SLOPE
Definition hardwareSettings.hpp:38

Definition at line 46 of file hardwareSettings.hpp.

◆ MAX_MISSION

constexpr int MAX_MISSION = 7
constexpr

Definition at line 22 of file hardwareSettings.hpp.

◆ MAX_V_ANALOG

constexpr float MAX_V_ANALOG = 3.3
constexpr

Definition at line 34 of file hardwareSettings.hpp.

◆ MICRO_TO_SECONDS

constexpr float MICRO_TO_SECONDS = 1e-6f
constexpr

Definition at line 25 of file hardwareSettings.hpp.

◆ MIN_HYDRAULIC_V

constexpr float MIN_HYDRAULIC_V = 0.5
constexpr

Definition at line 35 of file hardwareSettings.hpp.

◆ PROCESS_INTERVAL

constexpr int PROCESS_INTERVAL = 200
constexpr

Definition at line 9 of file hardwareSettings.hpp.

◆ PULSES_PER_ROTATION

constexpr int PULSES_PER_ROTATION = 48
constexpr

Definition at line 23 of file hardwareSettings.hpp.

◆ READY_TIMEOUT_MS

constexpr unsigned long READY_TIMEOUT_MS = 5000
constexpr

Definition at line 12 of file hardwareSettings.hpp.

◆ RELEASE_EBS_TIMEOUT_MS

constexpr unsigned long RELEASE_EBS_TIMEOUT_MS = 1000
constexpr

Definition at line 13 of file hardwareSettings.hpp.

◆ RES_TIMESTAMP_TIMEOUT

constexpr int RES_TIMESTAMP_TIMEOUT = 200
constexpr

Definition at line 4 of file hardwareSettings.hpp.

◆ RL_WSS

constexpr int RL_WSS = 5
constexpr

Definition at line 87 of file hardwareSettings.hpp.

◆ RR_WSS

constexpr int RR_WSS = 4
constexpr

Definition at line 88 of file hardwareSettings.hpp.

◆ SDC_BSPD_OUT

constexpr int SDC_BSPD_OUT = 14
constexpr

Definition at line 67 of file hardwareSettings.hpp.

◆ SDC_TSMS_STATE_PIN

constexpr int SDC_TSMS_STATE_PIN = 22
constexpr

Definition at line 85 of file hardwareSettings.hpp.

◆ SECONDS_IN_MINUTE

constexpr int SECONDS_IN_MINUTE = 60
constexpr

Definition at line 24 of file hardwareSettings.hpp.

◆ SLOWER_PROCESS_INTERVAL

constexpr int SLOWER_PROCESS_INTERVAL = 30
constexpr

Definition at line 10 of file hardwareSettings.hpp.

◆ SOC

constexpr int SOC = 24
constexpr

Definition at line 90 of file hardwareSettings.hpp.

◆ SOC_PERCENT_MAX

constexpr int SOC_PERCENT_MAX = 100
constexpr

Definition at line 21 of file hardwareSettings.hpp.

◆ WATCHDOG_TEST_DURATION

constexpr int WATCHDOG_TEST_DURATION = 1000
constexpr

Definition at line 32 of file hardwareSettings.hpp.

◆ WATCHDOG_TOGGLE_DURATION

constexpr int WATCHDOG_TOGGLE_DURATION = 1000
constexpr

Definition at line 31 of file hardwareSettings.hpp.

◆ WD_ALIVE

constexpr int WD_ALIVE = 15
constexpr

Definition at line 71 of file hardwareSettings.hpp.

◆ WD_PULSE_INTERVAL_MS

constexpr int WD_PULSE_INTERVAL_MS = 50
constexpr

Definition at line 30 of file hardwareSettings.hpp.

◆ WD_READY

constexpr int WD_READY = 37
constexpr

Definition at line 93 of file hardwareSettings.hpp.

◆ WD_SDC_CLOSE

constexpr int WD_SDC_CLOSE = 40
constexpr

Definition at line 70 of file hardwareSettings.hpp.

◆ WD_SDC_RELAY

constexpr int WD_SDC_RELAY = 33
constexpr

Definition at line 94 of file hardwareSettings.hpp.

◆ WD_TIMEOUT_MS

constexpr int WD_TIMEOUT_MS = 500
constexpr

Definition at line 15 of file hardwareSettings.hpp.
