Public Member Functions | |
| __init__ (self) | |
| configure_plot (self) | |
| setup_events (self) | |
| on_key (self, event) | |
| set_cone_mode (self, color) | |
| reset_initial_position (self) | |
| set_target_mode (self) | |
| start_final_box (self) | |
| undo_last_cone (self) | |
| remove_marker (self, marker_name) | |
| on_click (self, event) | |
| handle_left_click (self, event) | |
| handle_right_click (self) | |
| add_cone (self, event) | |
| set_initial_position (self, event) | |
| set_target (self, event) | |
| add_final_box_point (self, event) | |
| draw_final_box (self) | |
| calculate_theta (self, p1, p2) | |
| save_points (self) | |
Public Attributes | |
| fig | |
| ax | |
| x_points | |
| y_points | |
| colors | |
| current_color | |
| scatter | |
| init_pos | |
| temp_target | |
| init_scatter | |
| target_scatter | |
| orientation_line | |
| theta | |
| final_box_points | |
| final_box_plot | |
| mode | |
| on_click | |
| on_key | |

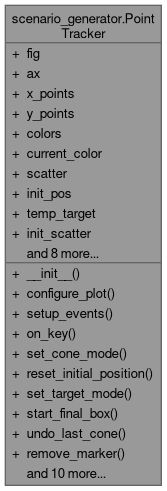

Detailed Description
A class to interactively track and mark points on a matplotlib plot. The tool supports: - Marking yellow and blue cones (track positions). - Setting an initial position. - Defining a target for orientation. - Selecting two points for a final rectangular box. Data is saved to a file when the user finishes.
Definition at line 6 of file scenario_generator.py.
Constructor & Destructor Documentation
◆ __init__()
| scenario_generator.PointTracker.__init__ | ( | self | ) |
Definition at line 19 of file scenario_generator.py.
Member Function Documentation
◆ add_cone()
| scenario_generator.PointTracker.add_cone | ( | self, | |
| event | |||
| ) |
Add a cone point and update the scatter plot.
Definition at line 178 of file scenario_generator.py.
◆ add_final_box_point()
| scenario_generator.PointTracker.add_final_box_point | ( | self, | |
| event | |||
| ) |
Collect final box points and draw the rectangle if two points are set.
Definition at line 230 of file scenario_generator.py.
◆ calculate_theta()
| scenario_generator.PointTracker.calculate_theta | ( | self, | |
| p1, | |||
| p2 | |||
| ) |
Calculate the angle (in radians) between two points relative to the horizontal axis.
Definition at line 255 of file scenario_generator.py.
◆ configure_plot()
| scenario_generator.PointTracker.configure_plot | ( | self | ) |
Configure the matplotlib plot with title, labels, gridlines, and limits.
Definition at line 51 of file scenario_generator.py.
◆ draw_final_box()
| scenario_generator.PointTracker.draw_final_box | ( | self | ) |
Draw the rectangle representing the final box.
Definition at line 236 of file scenario_generator.py.
◆ handle_left_click()
| scenario_generator.PointTracker.handle_left_click | ( | self, | |
| event | |||
| ) |

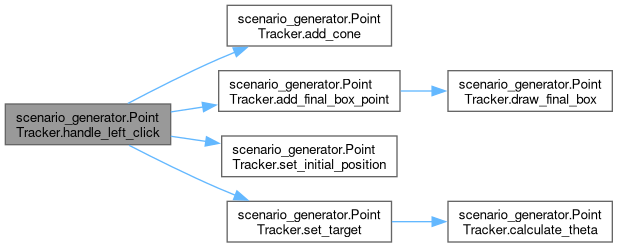

Process a left-click event depending on the current mode.
Definition at line 161 of file scenario_generator.py.
◆ handle_right_click()
| scenario_generator.PointTracker.handle_right_click | ( | self | ) |
On right-click, save data (if any) and close the plot.
Definition at line 172 of file scenario_generator.py.
◆ on_click()
| scenario_generator.PointTracker.on_click | ( | self, | |
| event | |||
| ) |

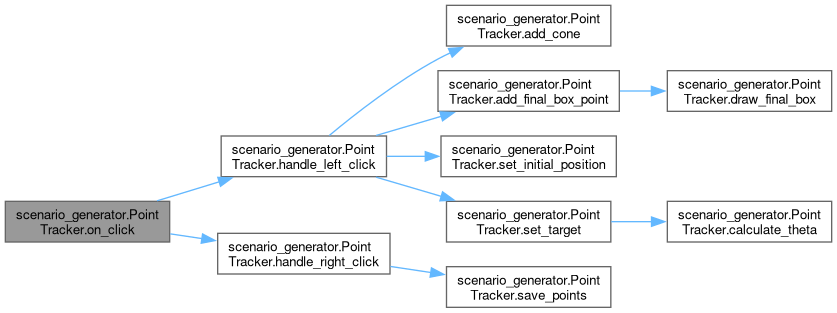

Route mouse click events based on button and current mode.
Definition at line 151 of file scenario_generator.py.

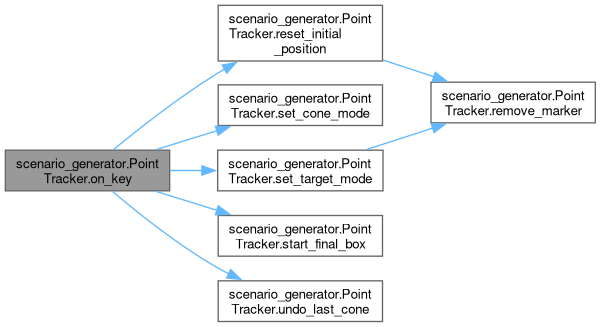

◆ on_key()
| scenario_generator.PointTracker.on_key | ( | self, | |
| event | |||
| ) |
Delegate key press actions to helper methods.
Definition at line 74 of file scenario_generator.py.
◆ remove_marker()
| scenario_generator.PointTracker.remove_marker | ( | self, | |
| marker_name | |||
| ) |

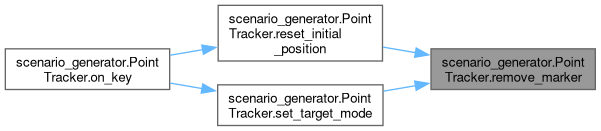

Remove a marker attribute if it exists.
Definition at line 144 of file scenario_generator.py.
◆ reset_initial_position()
| scenario_generator.PointTracker.reset_initial_position | ( | self | ) |
Reset the initial position and clear any orientation markers.
Definition at line 98 of file scenario_generator.py.
◆ save_points()
| scenario_generator.PointTracker.save_points | ( | self | ) |
Save the configuration (initial position, orientation, final box, and cones) to a text file.
Definition at line 263 of file scenario_generator.py.
◆ set_cone_mode()
| scenario_generator.PointTracker.set_cone_mode | ( | self, | |
| color | |||
| ) |
Set mode for adding cones of a given color.
Definition at line 91 of file scenario_generator.py.
◆ set_initial_position()
| scenario_generator.PointTracker.set_initial_position | ( | self, | |
| event | |||
| ) |
Set the initial position and mark it on the plot.
Definition at line 194 of file scenario_generator.py.
◆ set_target()
| scenario_generator.PointTracker.set_target | ( | self, | |
| event | |||
| ) |
Set the target point, compute orientation, and update markers.
Definition at line 209 of file scenario_generator.py.
◆ set_target_mode()
| scenario_generator.PointTracker.set_target_mode | ( | self | ) |
Prepare to select a target point for orientation.
Definition at line 108 of file scenario_generator.py.
◆ setup_events()
| scenario_generator.PointTracker.setup_events | ( | self | ) |
Connect mouse and key events to their handlers.
Definition at line 69 of file scenario_generator.py.
◆ start_final_box()
| scenario_generator.PointTracker.start_final_box | ( | self | ) |
Initialize final box mode and clear any previous box.
Definition at line 116 of file scenario_generator.py.
◆ undo_last_cone()
| scenario_generator.PointTracker.undo_last_cone | ( | self | ) |
Remove the last added cone point and update the display.
Definition at line 125 of file scenario_generator.py.
Member Data Documentation
◆ ax
| scenario_generator.PointTracker.ax |
Definition at line 21 of file scenario_generator.py.
◆ colors
| scenario_generator.PointTracker.colors |
Definition at line 26 of file scenario_generator.py.
◆ current_color
| scenario_generator.PointTracker.current_color |
Definition at line 27 of file scenario_generator.py.
◆ fig
| scenario_generator.PointTracker.fig |
Definition at line 21 of file scenario_generator.py.
◆ final_box_plot
| scenario_generator.PointTracker.final_box_plot |
Definition at line 40 of file scenario_generator.py.
◆ final_box_points
| scenario_generator.PointTracker.final_box_points |
Definition at line 39 of file scenario_generator.py.
◆ init_pos
| scenario_generator.PointTracker.init_pos |
Definition at line 31 of file scenario_generator.py.
◆ init_scatter
| scenario_generator.PointTracker.init_scatter |
Definition at line 33 of file scenario_generator.py.
◆ mode
| scenario_generator.PointTracker.mode |
Definition at line 48 of file scenario_generator.py.
◆ on_click
| scenario_generator.PointTracker.on_click |
Definition at line 71 of file scenario_generator.py.
◆ on_key
| scenario_generator.PointTracker.on_key |
Definition at line 72 of file scenario_generator.py.
◆ orientation_line
| scenario_generator.PointTracker.orientation_line |
Definition at line 35 of file scenario_generator.py.
◆ scatter
| scenario_generator.PointTracker.scatter |
Definition at line 28 of file scenario_generator.py.
◆ target_scatter
| scenario_generator.PointTracker.target_scatter |
Definition at line 34 of file scenario_generator.py.
◆ temp_target
| scenario_generator.PointTracker.temp_target |
Definition at line 32 of file scenario_generator.py.
◆ theta
| scenario_generator.PointTracker.theta |
Definition at line 36 of file scenario_generator.py.
◆ x_points
| scenario_generator.PointTracker.x_points |
Definition at line 24 of file scenario_generator.py.
◆ y_points
| scenario_generator.PointTracker.y_points |
Definition at line 25 of file scenario_generator.py.
The documentation for this class was generated from the following file:
- src/planning/test/integration_tests/tests/scenario_generator.py
